INDUSTRIAL REFRIGERATION

Industrial Refrigeration & Chillers

Engineered chilling solutions for industrial processes, designed around water quality, cooling media, ambient conditions and the required heat load.

Air & water cooled systems

Load-responsive temperature control

Energy-efficient operation

REQUEST A QUOTE EXPLORE CHILLERS

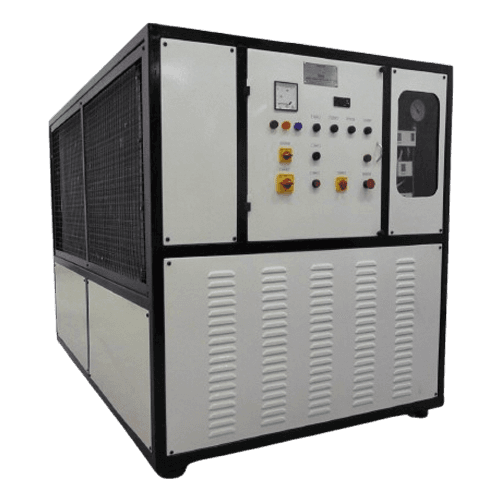

INDUSTRIAL CHILLER

Compact designMicroprocessor control

Industrial Chilling Systems

Choose the chiller configuration around the process.

The supplied product material describes scroll and screw chiller families according to cooling media, water quality, ambient temperature and operating load.

Air Cooled Scroll Chiller

Canadian Crystalline's air cooled scroll chillers are distributed over four series, broadly categorized based on the water quality used for the process and the ambient temperatures under which they are made to operate. All these chillers are made to be compatible for both indoor and outdoor installation.

Scroll chillers starting at capacities of 10 TR contain single or two compressor circuit redundancy options. When a product contains a two/three/four compressor, it is indicative of their own independent refrigerant circuits that function in succession, which further ensures redundancy of the unit and longevity of the circuit. Each chiller comes with a dedicated microprocessor or PLC-based chiller controller which determine the number of compressors to run based on the amount of heat load.

Indoor & outdoor installation compatible

Screw Chiller

Canadian Crystalline's screw chillers are distributed under two series, broadly categorized based on cooling media i.e. Air-Cooled or Water – Cooled, the water quality used for the process and the ambient temperatures under which they are made to operate. All these chillers are made to be compatible for both indoor and outdoor installation.

Screw chillers are available starting from 40TR and above. Screw chillers contain single or two compressor circuit redundancy options depending on the capacity. Screw chillers are designed to work for varying load. Two types of compressor systems are available based on the nature of loads i.e. STEP CONTROL & STEPLESS CONTROL. Chiller comes with a dedicated microprocessor or PLC-based chiller controllers which determine the number of compressors to run based on the amount of heat load. Due to these features, the Air Cooled Screw Chillers are energy efficient and offer redundancy based on the criticality of the application.

Indoor & outdoor installation compatible

Energy Efficient Chiller

Fine-tuned cooling for variable industrial loads.

An energy-efficient cooler is composed of a highly sensitive compressor of either VFD or digital scroll technology, an electronic expansion valve, a fan speed controller and a chiller controller. It requires these control units in order to fine-tune the process and ensure that energy is consumed sustainably.

VFD-based compressors function at varying capacities from 30-110%, controlled by parameters like fluid temperatures or refrigerant pressures. Canadian Crystalline makes use of Complicated Digital Scroll™ compressors which provide capacity modulation from 10-100% of full load capacity.

A chiller that uses digital scrolls is seen to save 30-32% in power consumption compared to normal scroll, and so is a better investment when applications call for variable load conditions. They also provide greater temperature stability, showing deviations of only +/- 0.5°C.

Electronic expansion valves are installed within these chillers to maintain a desired superheat regardless of changing conditions and to control the refrigerant anywhere within the system. Fan speed controllers regulate temperature and refrigerating systems, thereby minimizing power wastage.

Canadian Crystalline's Energy Efficient Chillers find applications in medical, data centre, induction welding, food processing and lamination industries.

VFD / Digital Scroll

Sensitive compressor technologies allow capacity modulation for changing process demand.

Electronic Expansion

Electronic expansion valves maintain the desired superheat under changing conditions.

Fan Speed Control

Fan speed control regulates the refrigerating system and helps minimize power wastage.

Load-Based Control

Dedicated chiller controllers determine compressor operation based on heat load.

Salient Features

Built for continuous industrial operation.

Compact Design, Easy to Install

High Pressure, High Volume Stainless Steel pumps for 24 hrs operations

Water reservoir for continuous flow and equipped with PUF insulation

From 3 Tr to 100 Tr chillers are produced with brazed plate heat exchanger for better efficiency

Reliable controller and water outlet temperature display on the front panel

Industrial Refrigeration

Let's build the right cooling system for your process.

Share your process, cooling requirement, heat load and operating conditions with our team.

GET IN TOUCH
