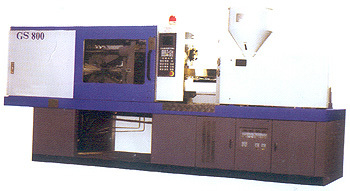

Technical Index for GS Series

Description	Unit	GS600		GS800			GS1200			GS1600
		A	B	A	B	C	A	B	C	A	B
Theoretical shot size	Cm 3	63	90	120	152	188	172	213	258	302	273
Injection Weight	g	57	81.90	109	139	172	157	195	236	274	339
Screw diameter	mm	25	30	32	36	40	36	40	44	45	50
Draw Ratio of Screw	L/D	23	19.2	24.7	22	19.8	23.3	21	19.1	21	19.1
Screw Speed	r/min	260		0-220			0-220			0-220
Screw Stroke	mm	130		150			170			190
Injection Pressure	Mpa	225	156	232	183	148	210	171	141	188	152
Injection Rate	g/s	60	80	76	98	120	98	120	140	126	158
Plasticizing Capacity	g/s	7.5	11	11.5	14	16	15	18	22	26	30
Clamp tonnage	KN	600		800			1200			1600
Space Between Tie Bars	mm	330x330		370x370			410x410			460x460
Toggle Stroke	mm	320		360			400			440
MAX.Day light	mm	640		720			800			940
Space between Tie-bars(MIN-MAX)	mm	120-320		150-360			150-400			180-500
Ejector Stroke	mm	80		100			140			140
Ejector Number	piece	5		5			5			5
Ejector Tonnage	KN	25		38			38			38
System Pressure	Mpa	16		16			16			16
Pump Motor Power	KW	7.5		11			15			15
Heater Power	KW	4.5		6.3			8.5			9.5
Machine Weight	T	2.2		3			4			5
Machine Dimension(LxWxH)	m	3.7x1.0x1.75		3.93x1.2x1.84			4.8x1.4x2.0			5.3x1.5x2.0
Oil Tank Capacity	L	180		250			280			400

GS2100			GS2600			GS3200			GS3800			GS4500			GS5000
A	B	C	A	B	C	A	B	C	A	B	C	A	B	C	A	B	C
381	471	570	594	707	829	791	928	1077	1094	1269	1457	1611	1833	2070	1959	2210	2480
346	428	518	540	643	754	719	844	980	995	1155	1326	1470	1672	1888	1783	2011	2256
45	50	55	55	60	65	60	65	70	65	70	75	75	80	85	80	85	90
23.3	2	19	21.8	20	18.5	22.8	21	19.5	23.6	22	20.6	22.3	21	19.8	23.4	22	20.8
0-180			0-180			0-170			0-180			0-150			0-170
240			250			280			330			365			390
207	168	140	212	179	152	213	181	156	196	170	148	182	160	141	201	178	159
142	178	210	220	250	300	260	302	350	330	390	450	408	464	520	446	502	560
23	28	34	28	34	40	38	42	48	55	60	68	65	75	85	70	85	110
2100			2600			3200			3800			4500			5000
545x545			580x580			680x680			730x730			805x780			840x840
520			570			660			730			780			830
1070			1170			1360			1450			1580			1660
200-550			220-600			250-700			250-720			250-800			350-830
170			170			170			200			220			250
9			9			13			13			13			13
100			100			100			125			150			160
16			16			16			16			16			16
22			30			37			37			45			55
12.5			15			18			20			25			32
7			10			12			16			20			30
6x1.6x2.1			6.3x1.6x2.3			7.0x1.8x2.3			7.6x2.2x2.8			8.6x2.3x2.8			9x2.3x3.5
500			600			700			1000			1300			1300

Technical Index for GM Series

Description	Unit	GM500			GM800			GM1000
		A	B	C	A	B	C	A	B	C
Screw diameter	mm	30	35	38	35	38	40	38	40	42
Draw Ratio of Screw	L/D	22	19	17.5	20.9	19.3	18	20	19	18
Theoretical shot size	Cm 3	99	135	159	118.7	140	155	186	207	228
Injection Weight	g	90	120	145	108	125	141	169	185	204
Injection Rate	g/s	65	88.7	104	76	90	99	96	107	112
Plasticizing Capacity	g/s	8.4	11.5	13.6	9.9	11.7	13	13.5	15	16
Injection Pressure	Mpa	213	157	133	192	163	147	195	176	160
Screw Speed	r/min	0~210			0~210			0~230
Clamp tonnage	KN	500			800			1000
Toggle Stroke	mm	250			267			300
Space Between Tie Bars	mm	295x295			348x348			350x350
Space between Tie-bars(MIN-MAX)	mm	80-330			80-400			130-410
MAX.Day light	mm	580			627			710
Ejector Stroke	mm	75			87			110
Ejector Tonnage	piece	33			33			33
Ejector Number	KN	1			1			5
System Pressure	Mpa	14			14			14
Pump Motor Power	KW	11			11			15
Heater Power	KW	6.3			6.3			6.3
Machine Dimension(LxWxH)	m	3.4x1.0x1.7			3.4x1.1x1.7			3.9x1.2x1.8
Machine Weight	t	2.5			3			3.7
Oil Tank Capacity	L	200			210			230

GM1250			GM1800		GM2000		GM3000		GM3400		GM4500
A	B	C	A	B	A	B	A	B	A	B	A	B
38	40	42	40	45	50	55	60	65	65	75	75	80
20	19	18.1	21	19	22	20	20.5	19	20.7	18	20	17.7
214	238	262	245	310	377	456	694	815	978	1303	1700	2184
194	216	238	220	250	336	406	632	700	890	1162	1547	2000
103	114	125	116	146	142	172	229	269	288	384	412	529
15	16.5	18	17	21	22.5	26.2	26.7	31.3	32.9	43.8	51.8	66.5
195	176	159	176	139	161	133	151	129	170	128	191	149
0~210			0~200		0~180		0~200		0~200		0~120
1250			1800		2000		3000		3400		4500
380x380			420x420		465x465		630x630		665x665		770x770
130-420			150-420		180-450		250-630		250-680		300-730
770			795		870		1220		1300		1480
138			121		120		180		185		200
33			40		40		70		70		110
5			5		5		5		5		11
14			14		14		14		14		14
15			15		22		30		30		45
6.3			7.5		9.5		17.8		17.8		25
4.3x1.3x1.9			4.7x1.4x2.0		5.0x1.4x2.0		6.7x1.8x2.0		6.7x1.8x2.0		8.0x2.27x2.44
4			4.5		5		11		12		17
250			410		400		700		700		1000

Technical Index for special purpose machine

Description	Unit	GM500	GM800	GM1000
Screw diameter	mm	38	35	40
Screw L/D Ratio	L/D	15	20	18
Shot Volume(theoretical)	Cm 3	125	159	207
Injection Weight	g	112	144	189
Injection Rate	g/s	79	68	89
Plasticizing Capacity	g/s	18.4	17	17
Injection Pressure	Mpa	170	230	176
Screw Speed	rpm	230	190	200
Clamp tonnage	KN	500	1500	1100
Toggle Stroke	mm	250	280	600
Space Between Tie Bars	mm	295x295	340x340	430x375
MAX.MOULD height	mm	280	330	-
MIN.MOULD height	mm	80	120	150
EjectorStroke	mm	75	87	140
Ejector Stroke	KN	33	33	33
Ejector Number	-	1	1	5
MAX.PUMP pressure	Mpa	14	14	17
Motor power	KW	11	11	15
Heater Power	KW	4.3	6.3	6.3
Machine Dimension	m	3.4x0.76x2	4.1x1.2x1.8	4.2x1.2x1.8
Weight	t	2.8	4	4
Hopper size	KG	30	50	50
Oil Tank Capacity	L	200	325	325

Technical Index for Thermosetting machine.

Standard Device :

Double - Cylinder balance injection system
Multi-prage pressure & Speed injection
Back-pressure adjustment device
Decompression
High speed clamping
Low pressure mold protection
Multiple hydraulic ejector knock-out
Lubrication system
Hydraulic pressure full proportional control
All computer control system
Moulding data memory system

Selectable :

Drying hopper
Auto-loaded
Hopper magnet
Mould clamps
Hydraulic unscrew device
Water cooler
Mould temperature controller
Auto color mixer with measuring device
Oil temperature controller
Oil bypass filter

SZG200/1000	GMG1800	GMG2000	GMG3400
40	50	53	70	75
12.6	16	17	18
207	382	423	1139	1308
225	400	44	1244	1438
116	210	210	354	407
30	40	51	85
216	138	143	147	128
180	200	180	160
1000	1800	2000	3400
300	375	420	620
350X350	420X420	465X465	665X665
290	376	406	620
60	106	136	190
138	121	120	185
33	40	47	89
1	5	3	5
14	14	14	14
15	15	22	30
-	-	-	-
4.2X0.9X1.7	4.7X1.4X2.0	5.0X1.4X2.0	6.7X1.8X2.8
3.7	4.5	5	12
50	70	70	100
300	410	400	700
